Hexagonal Weave Gabion

  Hexagonal Weave Gabion

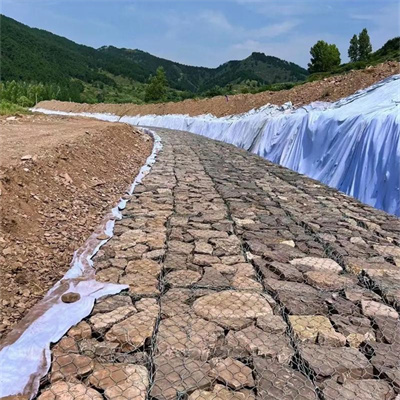

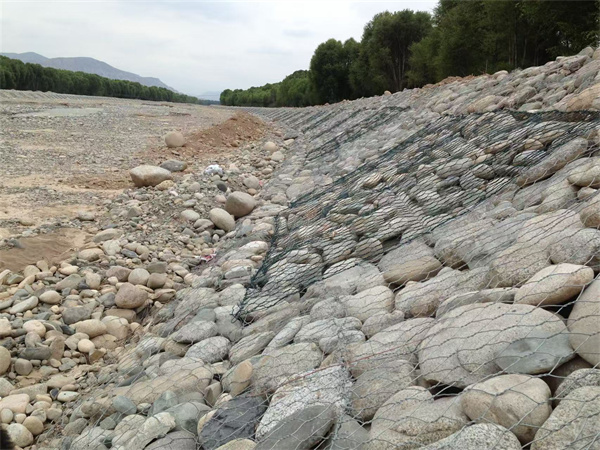

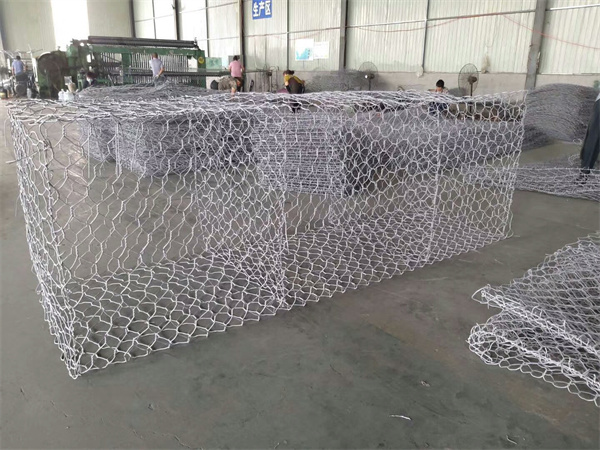

 Gabion Wires Box are made of heavy galvanized wire/ZnAl(Golfan)coated wire/PVC or PE coated wires,the mesh shape is hexagonal style.The Gabion Basket are used widely in slope protection,foundation pit supporting,mountain rock holding,river and dams scour protection.

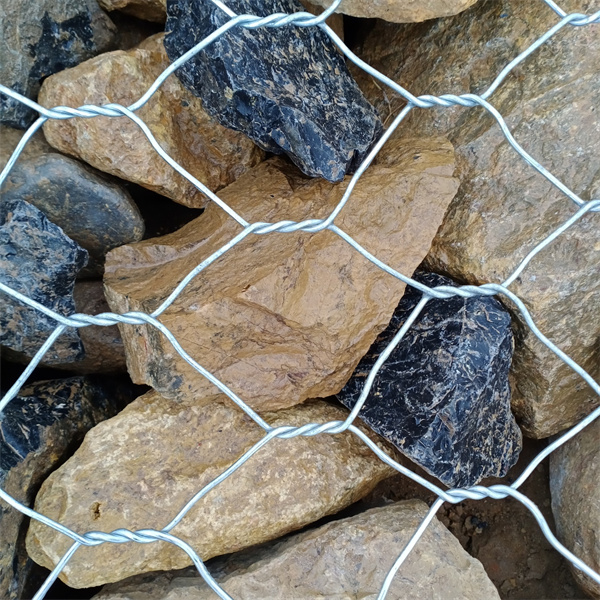

The double-twisted mesh connections of the woven mesh prevent the mesh from coming apart if the wire is cut or snaps,in each case the location of the fault is restricted to the neighbouring areas.The units are attached to each other using stitching wire and/or staples.

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

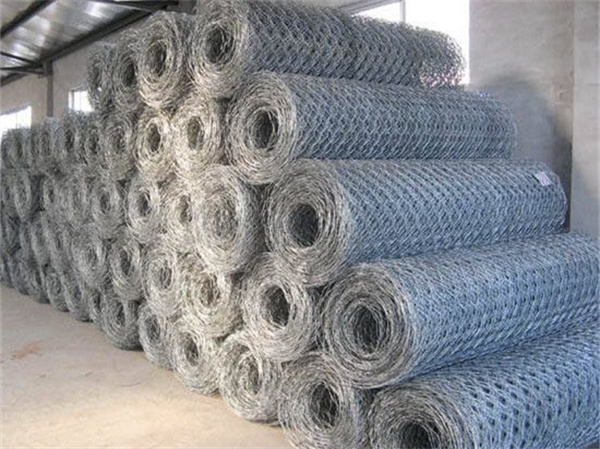

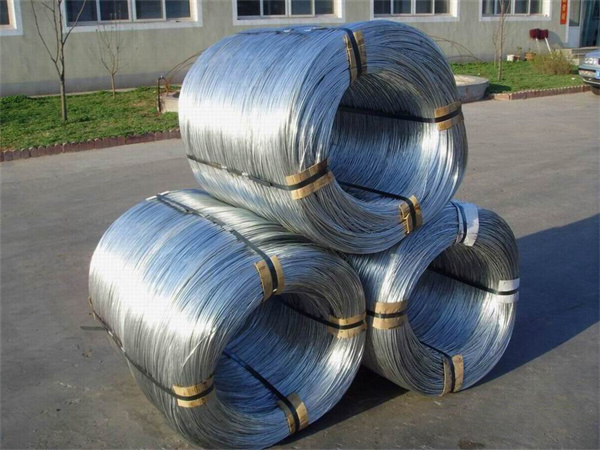

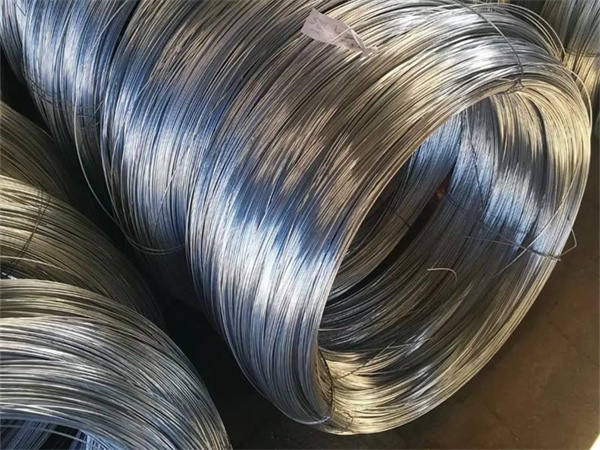

  Material

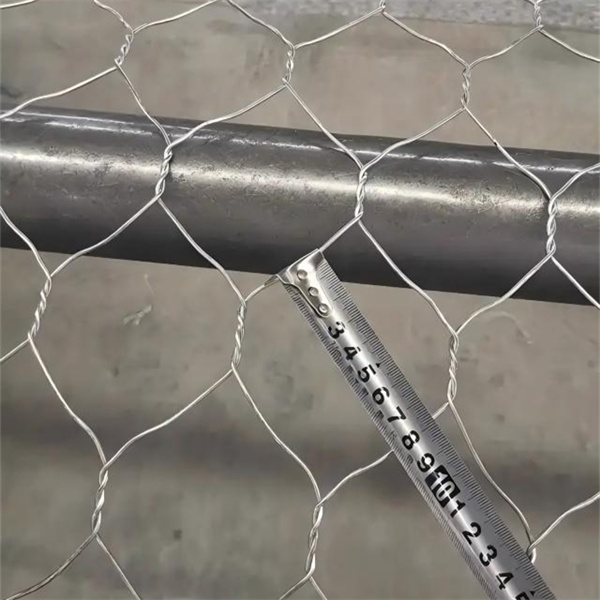

  Mesh

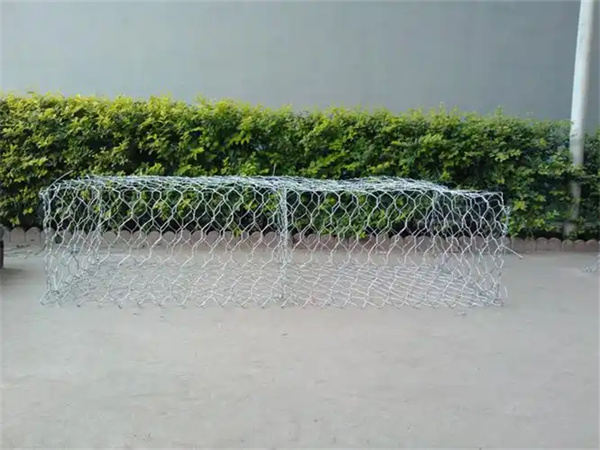

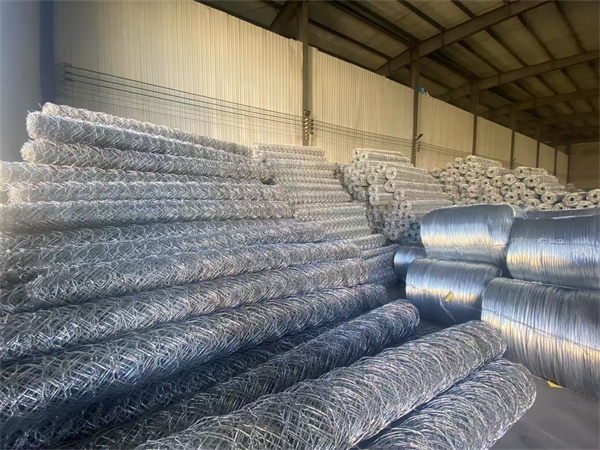

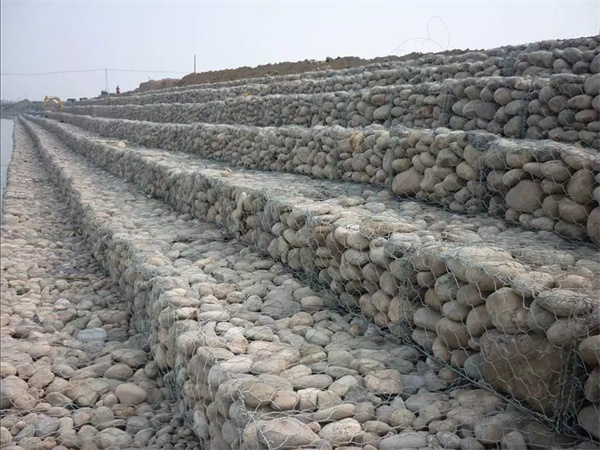

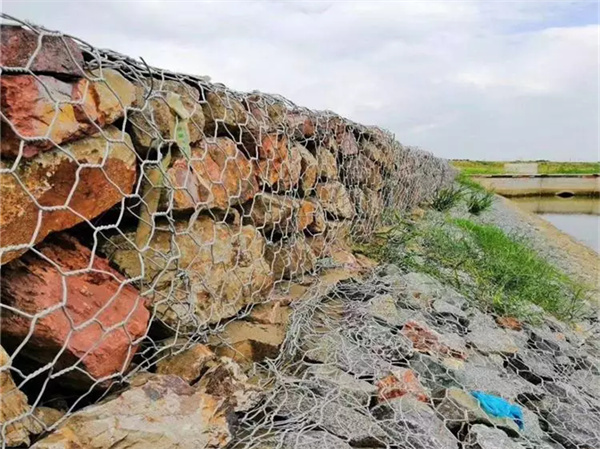

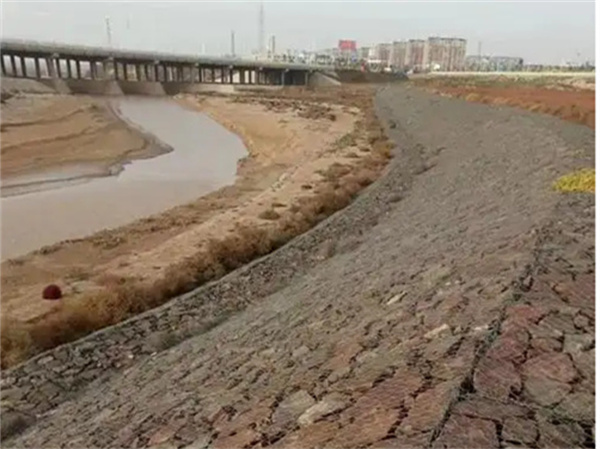

  Detail images

  Specifications:

· Material: low carbon steel wire, stainless steel wire, iron wire.

· Surface treatment: galfan, galvanized, PVC coated, galvanized plus PVC coated.

· Mesh opening shape: hexagon.

· Weaving method: normal twist (double twisted or triple twisted), reverse twist (double twisted).

· Nominal thickness of PVC coating layer is 0.50 mm to 1.00 mm.

· Galvanized is hot dipped galvanized. Thickness of galvanized layer can be manufactured according to customer's requirement, most can reach 300 g/m².

· The height of gabion mattress is 0.17 - 0.5 m.

· Tensile strength of wire is above 350-550 Mpa. The weight of zinc layer is above 245 g/m². Selvedge wire is cruder than the mesh wire. Lacing wire is thinner than the mesh wire, such as mesh wire is 3.0 mm, selvedge wire is 3.9 mm, lacing wire is 2.4 mm.

· Length, width and height can be customized.

  Features of gabion

· Compared with traditional galvanized gabion, galfan gabion has a good corrosion resistance.

· Galfan plus PVC coating gabion is stronger and more durable than galfan gabion.

· Corrosion resistant, high strength, possess ductility.

· PVC coating will increase the protection ability in high polluted environment, this gabion can fuse with surroundings through choosing different color.

· Convenient to transport and install.

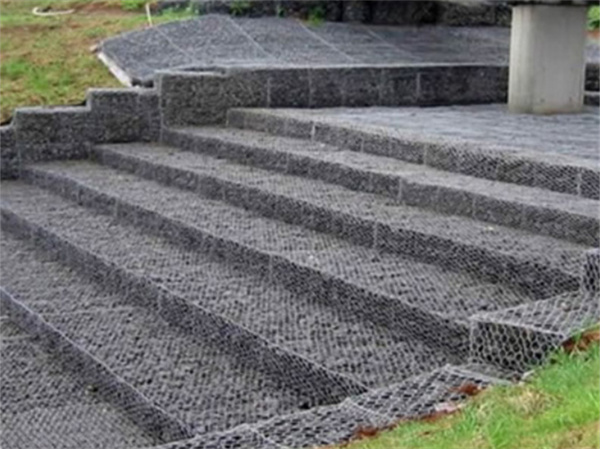

· Gabion basket or mattress are formed to a flexible, permeable and monolithic structure.

· Soft structure can adapt the change, will not be damaged, has better safety and stability than rigid structure.

· Due to the spacing among stones, it has good ability of resistant to scour, silt can be left in the spacing where plant can grow.

· Low cost, long life.

 Easy To Install, Can Be Done In Minutes

  Applications of gabion

· Control and guide water or flood.

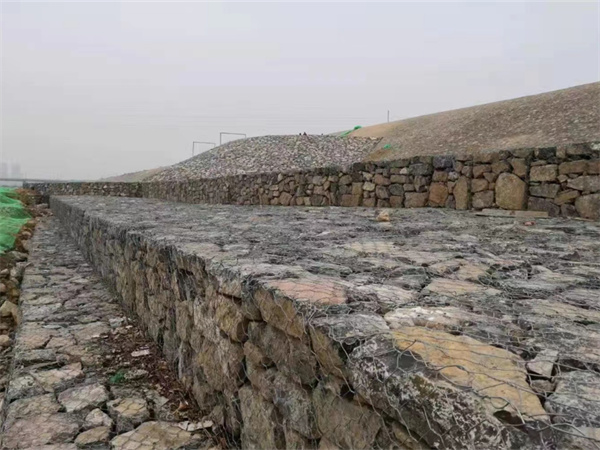

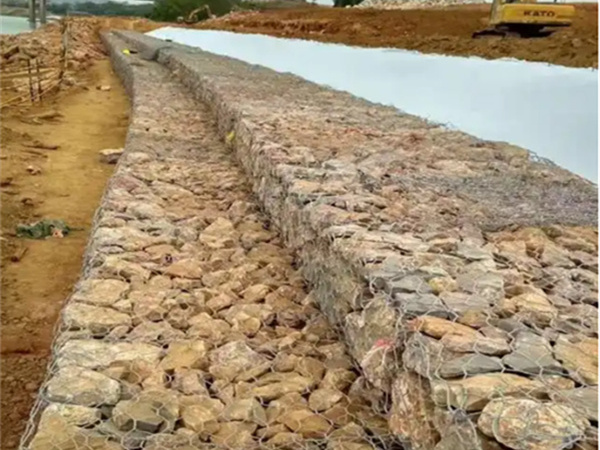

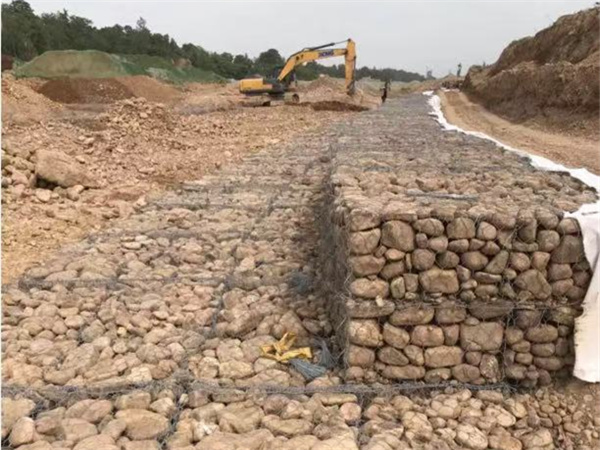

· Retaining walls.

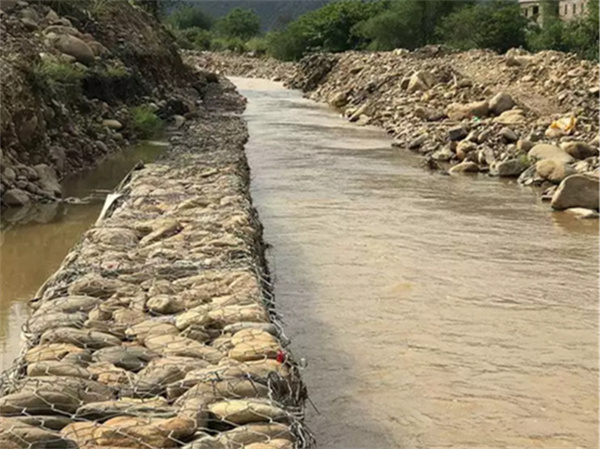

· Channel lining.

· Dam and seawall protection of scour resistance.

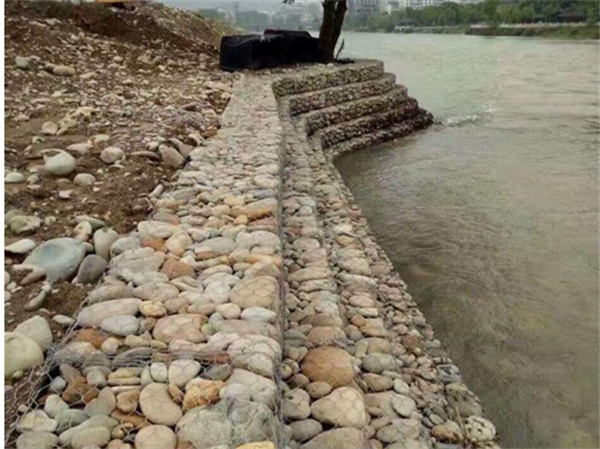

· Bridge and pier protection of scour resistance.

· Reservoir and river closure cages.

· Protect land from erosion.

· For Villa Landscape.

Note

Zinc-aluminum alloy is called Galfan in foreign, zinc coating is high zinc plus aluminum. Aluminum content is 5-10%, zinc content is 90-95% in Galfan. The meaning of Galfan is "an extraordinary galvanized". Corrosion resistance of the products is about 2-3 times that of ordinary galvanized. Currently, Galfan galvanized wire mainly used in gabion basket.
